不同的用途与间介/Brief Introduction：

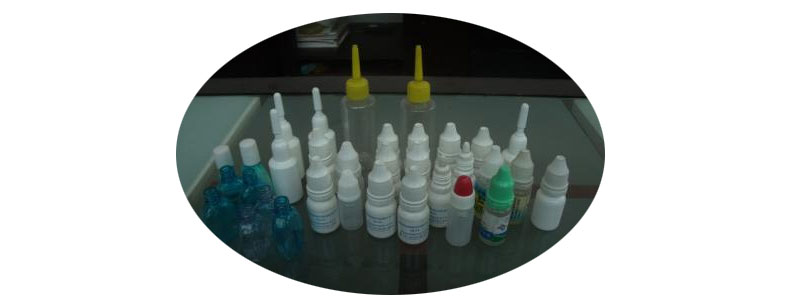

滤油机适用人群于2-30ML各式板材的椭圆形扁形塑料制品或玻离瓶的眼药粉装罐、光电子烟油等小标准容量装罐.滤油机由高的精密度气缸轴度数组织机构带来了度数等分盘地位手机上塞上盖;促使度气缸轴齿轮变速箱系统带来了旋盖头的举升;恒功率旋盖;扭动泵检定装罐;触感屏设定.无瓶不装罐,要加内塞,外盖.具地位手机透彻,齿轮变速箱系统保持稳定,保护好塑料瓶盖,检定准.操作使用简约等优势。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

亮点/Characteristic：

◆微笔记本添加、装量准确度、实操简单。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆台式主机转动速度可确定无极变频式变频调速。the mainframe running speed is stepless frequency conversion.◆生产加工量自动式按量控制。the product quantity can be controlled. ◆多样机械故障提示信息功能性(如低空气压力。无装灌、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆全主动断电工作，对指定路轨显示反复无分装、无内塞情形可全主动断电。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

的技术性能参数/Main Technical Parameters：

适用性规模Filling Volume	2-30ml
生产的功能Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
分装控制精度Filling Precision	≤±1%
电原 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自動上塞率Stoppering rate	≥99%
氧气减压阀Air Supply	1.3 m3/h    0.4-0.8Mpa
工作功率 Power	2.0 kw
工具净含量Weight	550 kg
形态规格Dimension	1800*1000*1500mm
