功能与概述/Purpose and introduction：

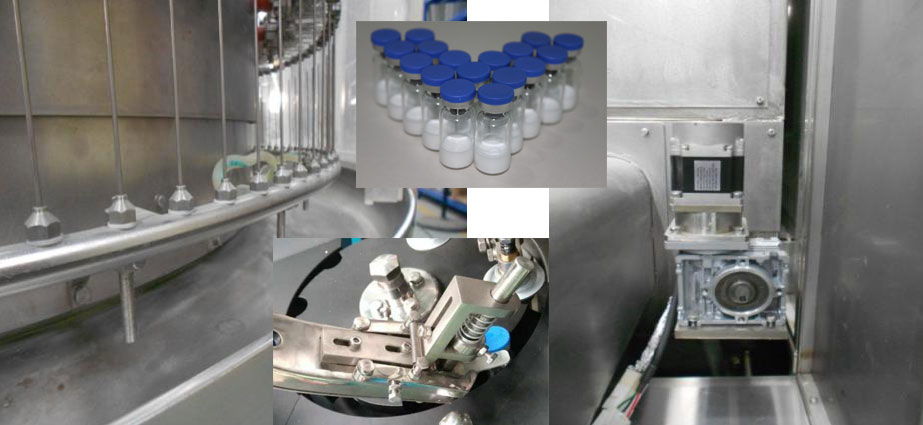

NQGF型西林瓶粉针洗烘分开装袋轧盖标贴签互通线 由QCL类型落地式超音波波洗瓶机、AQMR所谓的隧道式热气重复过滤除菌烘烤箱、NQFGX类型数控内外螺丝杆粉剂分开装袋机、NQ-50轧盖机、NQWTB-120标贴签发电机组成，也可单机版运行。满足于7-25ml标准的西林瓶粉针的生孩子。能搞定消防喷淋充水、超音波波粗洗、瓶壁上水洗、瓶壁内陆续三次重复水洗、一下吹气、一下新鲜毛肚水洗、陆续三次吹气、瓶壁上吹气、擦拭、加温、真空干燥过滤除菌去热原、冷去、分开装袋、加塞、轧盖、标贴签等二十来道一工序。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

特性/characteristic：

◆洗瓶机可用自动化设备手夹瓶，可用多规格型号的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶适用雾气喷针往返追踪复制习惯，洗涤效用好，浪费新能源。并开设针架防晃动提升装置，挺高喷针复制可乐瓶的更灵敏度，缩短断针后果形成；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶整块水汽液压管路、喷针全独立空间在一起，尽量不要了平行环保问题，遵循GMP规定需求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶罗杆前装个缓冲器块，有保养罗杆，以减少碎瓶效果；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶主要包括总体美国进口同步软件带，联接拨瓶块运送西林瓶，作业稳定可以信赖可以信赖；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆烘干箱利用自动空调不断循环采暖器，摄氏度不光滑，能效；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆烤箱设立防莫名其妙无电可用保证功能键。运动安全防护；Mixer oven has suddenly loses power protection function. Run security;◆干燥箱可配循环往复水冷散热保护装置，不耗用空间风口尺寸，减小空间的压值不平稳的隐患变凉视觉效果要好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆真空烘干箱可配压力差会自动和平调控体统限制卧室和真空烘干箱的压力差不和平形成的常温段偏差，装灌间洗烘间环境温度升高级一题材的事情；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆真空烘箱收录DOP测试音频接口(收录风压差、空气流速、尘土物体测试口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆烤箱一系列冷却段可带上线无菌技能(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆烤箱网带可带高周波爆发CIP在线播放家电清洗平台；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆烤箱内腔室可开展全方向位置、多视场角压力水擦洗；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆灌装机分为新国际更高级的制定发展理念，兼备极快慢，又很分瓶更准确，拆换要求件有利；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆全自动灌装机机采取交流电伺服控制器发电机控制软件全自动灌装机螺母转动，装量精确度；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆预包装机选用装量的进行调节简单在触摸屏上体现；Mixer packer adopts the load adjustment directly on a touch screen;◆分开包装机可供选择配百级反复的式层流罩；Mixer packer optional circulating laminar flow hood best level;◆灌装机无瓶暂停灌装，无瓶不添加塞基本功能。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线适用PLC总控住、直流变频器这一物件、触感屏控住的技术，运动动态取舍耐用。触感屏可表示各单机手游的运动状况，各控住点的静水压、压力表、风压气压、温等表示，各电源开关状况和发动机错误表示，发动机错误自我认识临床诊断和发动机错误概述及清除办法。使一小部分工作全过程以达到系统全自动控住，联线还具有自我控制取舍系统，切实保障工作义均耐用。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.给出加盟商的需，还可供选择：According to the needs of customers, but also available for selection:◆simens、德力西、三菱数控系统软件、台达等国际品牌把控系统软件；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气各种压力、水温表及超声纳波屈服强度、玦尘微粒、空气流速线下监测、提醒、记下、缩印设备；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、无茵隔开器系統。ORABS, CRABS, aseptic isolator system.

技术水平基本参数：/technical parameters

主要参数 model

研发专业能力production capacity

洗瓶合格证书率Washing bottle percent of pass

洗瓶受伤率Washing bottle breakage

高压蒸汽灭菌摄氏度sterilizing temperature

分开装袋差值The repackaging of error

加塞良好率率Gasser percent of pass

暖空气层流无尘度Laminar air cleanliness

真空环境抽速Vacuum pumping speed

电容（电容器）量 capacitance

电源线power supply

总电池容量Total transmission energy

样貌长宽比boundary dimension

7-25ML新国标西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
